Not to be confused with the AK-74.
For other uses, see AK.

The AK (Russian: Автомат Калашникова, Avtomat Kalashnikova, lit. "Kalashnikov's automatic assault rifle"), almost universally known as the AK-47, is an assault rifle that was designed by Mikhail Kalashnikov. Originally designed for the Soviet armed forces shortly after World War II, the AK and its derivatives have seen extensive use across the world and remain the most widely-produced rifles in history.

Name

AK-47 stands for Автомат Калашникова образца 1947 года (Avtomat Kalashnikova, obraztsa 1947 goda), literally "Kalashnikov's automaton, model of the year 1947." The name AK can refer to the original AK model or the AK series of rifles based on the original AK model. The name Kalashnikov rifle is a alternate western name for the general AK series of rifles.

The veracity of the "AK-47" name is a source of controversy among firearm historians. The AK never had a production designation by the name "AK-47", and has been produced by the Izhevsk Mechanical plant under the "Avtomat Kalashnikova AK" designation. The "AK-47" designation was stuck to the AK by western sources, likely because most Russian weapons have a design date in their names.

More confusingly, a few early Russian documents referred to AK prototypes by the AK-47 designation, which was dropped soon after.[1][2] Many western sources today recognize AK-47 as the weapon's more common but non-official nickname used in western publishing, while Russian sources would universally refer to the weapon as AK, and the AK-47 name only refers to early AK prototypes.

History

History_Of_AK-47

History Of AK-47

Sergeant Mikhail Kalashnikov, being in the hospital after being wounded, began to develop various small arms during World War II. In 1944 he was assigned to the Izhevsk Machinebuilding Plant (IZHMASH), where he developed a semi-automatic, gas-operated carbine. Starting with this design, outwardly resembling the German Sturmgewehr 44 though not mechanically based on it, he developed an assault rifle that he submitted for official Soviet Army trials in 1946.

During 1946 and early 1947, he redesigned his initial rifle and submitted it to the second trials, held in 1947. The new prototype was deemed superior to the other competitors and was consequently adopted in 1949 as the "7,62mm Avtomat Kalashnikova, obraztsa 1947 goda" (7.62mm Kalashnikov automatic rifle, model of 1947). After extensive field trials it was slightly modified in 1951, but retained the same name. This redesign was performed with the assistance of Hugo Schmeisser, with his role specifically to make Kalashnikov's weapon more suited to modern mass production techniques. Along with the basic version, a folding stock version had been developed for paratroopers and vehicle crews and was named the AKS.

AKMgreen

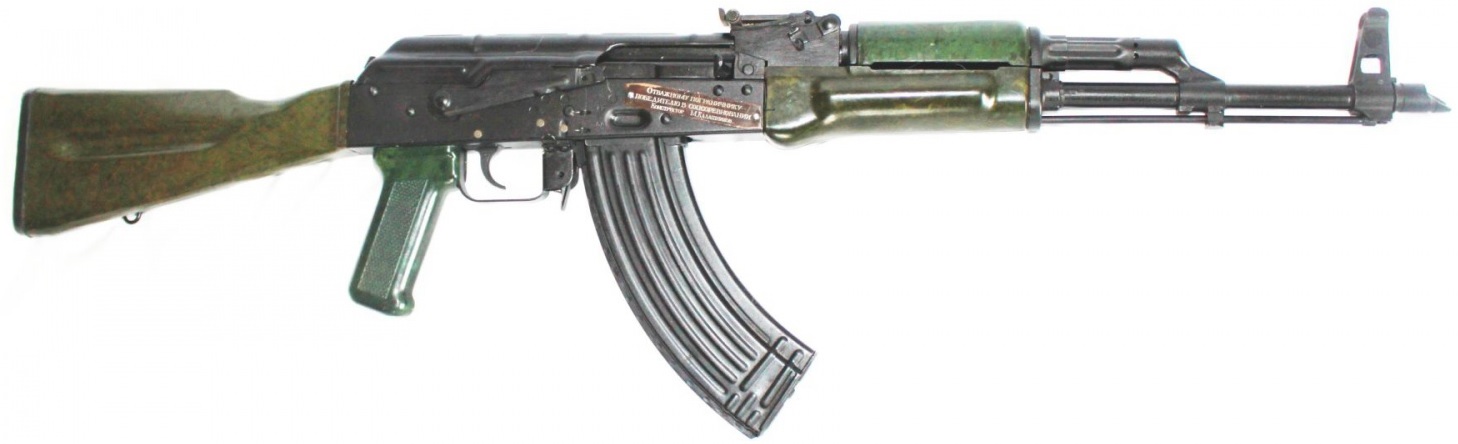

AKM with border guard presentation green handguards.

By 1959, the AK was modified again, this time more extensively, and was consequently adopted (after trials) as the AKM (Avtomat Kalashnikova Modernizirovannyj - Kalashnikov Automatic Modernized). The key changes were the switch from milling back to stamping as Soviet production techniques became precise enough to do this reliably, and improved trigger/hammer unit that introduced a hammer release delay device (often incorrectly referred to as a rate reducer). Other changes were effected, including a slightly raised buttstock, the pistol grip, and the addition of the removable muzzle flip compensator. This spoon-like compensator is screwed onto the muzzle and uses the muzzle blast to reduce muzzle climb during bursts of automatic fire.

Design details

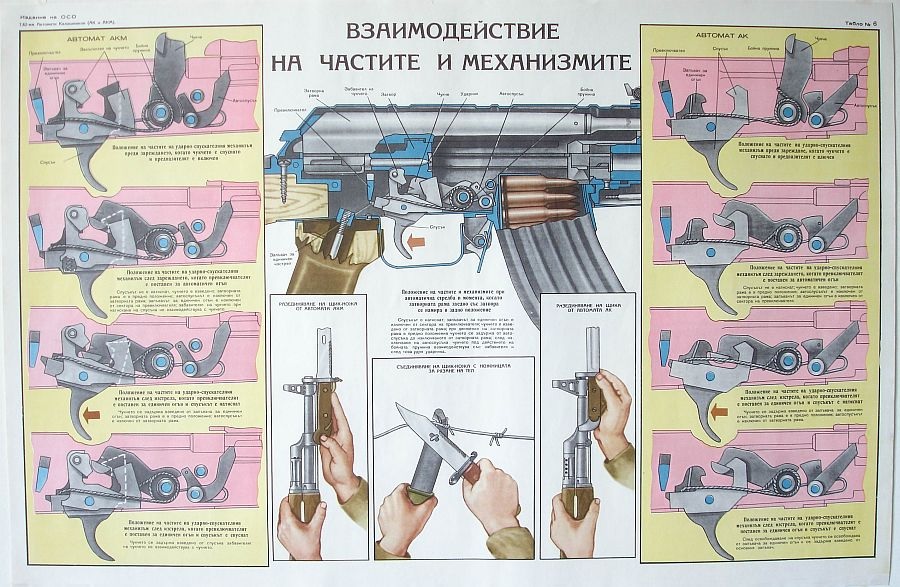

AKselectorschematic
AKselectorschematic1

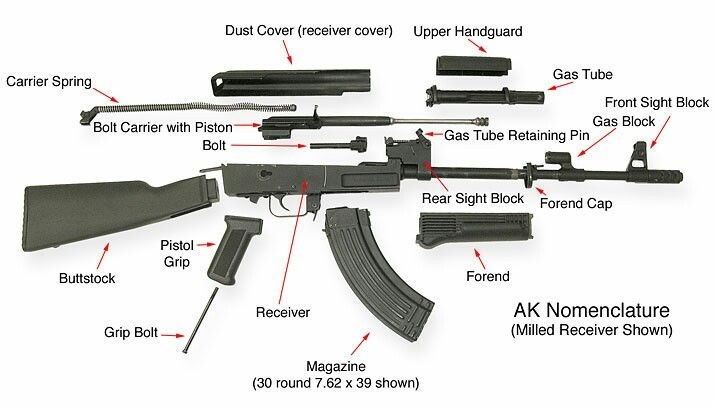

Ak47fieldstripped

AKs are long-stroke gas piston operated rifles. Most AKs are select-fire rifles; some have been converted to only fire semi-automatically. In all cases, the selector doubles as a dust cover; when the rifle is on SAFE, the selector covers the channel the charging handle travels in.

Receivers

The first production AKs were designed to be built with stamped receivers (in line with Schmeisser's expertise in this method of production), but this proved unworkable with Soviet production controls of the era and the rejection rate was very high. Functional examples of stamped first-production AKs were usually hand-finished via milling.

As a result, production AKs have milled steel receivers. These are identified by two milled out sections, right above the magazine well, one on each side of the receiver. These are known as AK receivers, and were rather expensive to produce.

Most modern AKs use stamped sheet metal receivers: this started with the AKM in 1959. The metal is 1mm thick. These receivers, with a couple of exceptions (Romanian WASR-10 rifles, Saiga rifles), have two dimples, one on each side of the receiver, that serve as magazine guides. These receivers can also be identified by the rivets that hold the front trunnion in the receiver. These receivers are found on AKM rifles, AK-74 rifles, and all rifles of the AK-10X lineage.

Some AKs (Yugoslavian rifles, some Chinese rifles, and all RPKs) have reinforced stamped sheet metal receivers; the metal is 1.6mm thick, instead of 1mm. These can be identified by the rivet that holds the front trunnion in the receiver; it is oversized and reinforced. These tend to be very durable and stable receivers.

Operating system

The piston rod (op rod, actuator rod) is permanently attached to the bolt carrier. The bolt carrier rides on the two rails machined in the receiver with significant clearances between the moving and stationary parts.

The bolt has two lugs that lock into the barrel extension, sealing the chamber when it goes into battery. Upon unlocking, it makes a primary extraction movement on the spent case. This, along with the significant taper of the 7.62x39mm and 5.45x39mm casing, results in very positive and reliable extraction, even with a dirty chamber and dirty or corroded cases. The rotation of the bolt is ensured by the curved cam track, machined in the bolt carrier, and by the appropriate stud on the bolt itself. The action spring and spring guide are located behind the gas piston and are partially hidden in its hollow rear part when the bolt is in battery. The base of the action spring assembly also serves as a receiver cover lock; the serrated end holds the cover down. The charging handle is permanently attached to the bolt carrier (in fact, it forms a single machined steel unit with the carrier), and does reciprocate when the weapon is fired.

Gas block and barrel assembly

The gas block is located on the barrel, and the gas port on modern AKs is drilled at 90 degrees; this was changed from the original 45 degrees due to 5.45mm bullets shearing in the barrel. Generally speaking, there are two thread pitches for the muzzle. AKs and AKMs use a 14/1mm left hand thread, and the barrel itself is threaded. AK-74s use a front sight assembly that slips over the barrel itself, and is threaded. Russian, Bulgarian, and East German AK-74s use a 24mm right-hand thread, while Romanians use a 22mm right-hand thread.

Most AKs, with a couple of exceptions (Yugoslavian rifles and their clones do not have chrome-lined bores), have cold hammer forged barrels with chrome-lined bores to resist corrosion.

Sights

The AK rifles feature rear sights adjustable for range (100 to 800 meters on an AK, 100 to 1000 on everything else), and a front sight, adjustable for elevation and windage. The rear sight is adjusted by pressing in on the slide catch and moving the slide bar along the leaf until the front edge of the bar is aligned with the line below the number that corresponds with the range in meters.

The front sight post is adjusted for elevation by screwing it in and out of the front sight base; a wrench is used to do this. Windage is adjusted by using a tool to move the front sight post mount from side to side. A 1mm adjustment of the front sight changes the point of impact by 26 cm at 100 meters on a 7.62 Soviet AK.[3]

Manual of arms

AKs are short, compact, gas-operated, select-fire weapons. They feed from 30-round box magazines, which have a significant curve if the AK in question is of the 7.62 Soviet variety; 5.45 Russian and 5.56 NATO magazines are straighter, with the 5.45 having a slightly more significant curve due to the taper of its casing.

The magazine is inserted via a "rocking" motion, positioned so that the lug on the front of the magazine engages with its recess in the magazine well, into the magazine well. It should be pulled to the rear until it snaps into place.

In order to operate the charging handle, the selector must be off safe. The charging handle is pulled all the way to the rear and then released to chamber a round. As the bolt carrier goes forward, the lug on the bottom of the bolt will strip a round out of the magazine and feed it into the chamber.

When a round is fired, the gas produced by the propellant in the cartridge goes into the gas tube and impinges upon the operating rod, which then unlocks the bolt and cycles the bolt carrier rearward, which causes it to cock the hammer as it travels. The bolt carrier then strips another round from the magazine and chambers it as it travels forward, and locks the bolt, sealing the round in the chamber.

When the last round is fired, there is no bolt catch mechanism to catch the bolt carrier group and prevent it from closing on an empty chamber. Thus, when the shooter reloads, he will need to rack the charging handle to chamber the next round. If the shooter experiences a malfunction, in most cases racking the charging handle (or reloading, if the magazine is bad OR empty), will solve the problem.

Private ownership

The AK-47 and its variants are popular amongst sport shooters and hunters in numerous countries. Privately owned AK-pattern rifles are usually semi-automatic only, as fully automatic and burst fire firearms are heavily restricted or prohibited for private ownership in most jurisdictions. The popularity of the AK rifle can be traced to its widespread use in cinematography.

United States

Fully automatic variants of the AK are heavily restricted by federal law, with the National Firearms Act of 1934 and the Hughes Amendment of the Firearm Owners Protection Act of 1986. Ownership of fully automatic firearms is legal in most states with the proper registration, but cost prohibitive for most private citizens. Semi-automatic variants of the AK are legal to own in most states, although numerous blue states such as California, New York, Massachusetts, Illinois, and many others restrict certain features such as detachable magazines, pistol grips, foregrips, and so forth.

Pioneer Shooting Center AK-47

A recreational sports shooter fires a semi-automatic only variant of the AK-47 rifle.

Canada

In Canada, the AK-47 and all its variants are classified as prohibited firearms (Section 12..5) by Weapons Prohibition Order No. 13 and as such, cannot be privately owned or acquired except in limited circumstances. Those who owned and registered firearms belonging to this category on or before December 1, 1998 can continue to possess and acquire the AK and its variants.

Switzerland

Swiss law permits the acquisition and ownership of fully automatic firearms by private citizens with a forbidden weapons permit. Acquisition of semi-automatic only variants of the AK rifles is relatively straightforward with a regular gun permit.

Trivia

  • The AK-47 is featured on the flag and emblem of Mozambique and the coat of arms of Zimbabwe.
  • In Mexico, the AK-47 is known as Cuerno de Chivo (meaning Goat Horn) because of its curved magazine. It is one of the weapons of choice of Mexican drug cartels.
  • A theory circulates about Mikhail Kalashnikov having stolen design innovations from Hugo Schmeisser due to Schmeisser's work for the Soviet Union starting in November 1946, and also that the AK was based off of the StG 44. However, by the time Schmeisser was brough to Izhevsk Mechanical Plant, Kalashnikov already had a working AK-47 (though not called that at the time) and it was being tested over 1000km from Schmeisser.
    • Kalashnikov, when asked about his inspirations for the AK, claimed he had never even seen a rifle in the Sturmgewehr series before, and actually said much of his inspiration came from the M1 Carbine. Mechanical similarities of the three weapons end at all of them using the long stroke piston recoil mechanism however.
    • Schmeisser did comparatively little while working for the Soviets and did not actually achieve any of the projects that he drafted due to a lack of technical education, despite his extensive experience as a gunsmith. Official documents actually describe Schmeisser as being useless, though this could be deliberate, because he felt he wasn't being paid well enough and he simply despised working for the Soviets. [4]
